SAP OData to MCP Server for BTP🚀
🎯 Project Goal
Transform your SAP S/4HANA or ECC system into a conversational AI interface by exposing all OData services as dynamic MCP tools. This enables natural language interactions with your ERP data:
- "Show me 10 banks" → Automatically queries the Bank entity with $top=10
- "Update bank with ID 1 to have street number 5" → Executes PATCH operation on Bank entity
- "Create a new customer with name John Doe" → Performs POST to Customer entity
- "List all purchase orders from this week" → Applies $filter for date range on PurchaseOrder entity
🏗️ Architecture Overview - 3-Level Progressive Discovery
graph TB
A[AI Agent/LLM] --> B[MCP Client]
B --> C[SAP MCP Server]
C --> D[SAP BTP Destination]
D --> E[SAP System]
C --> F[Level 1: Lightweight Discovery]
F --> G[Minimal Service/Entity List]
C --> H[Level 2: Full Metadata]
H --> I[Complete Entity Schemas]
C --> J[Level 3: CRUD Execution]
J --> K[Authenticated Operations]
style A fill:#e1f5fe
style C fill:#f3e5f5
style E fill:#e8f5e8
style F fill:#fff3e0
style H fill:#e8eaf6
style J fill:#e0f2f1
Core Components:
- 🔍 Level 1 - Discovery: Lightweight search returning minimal service/entity lists (token-optimized)
- 📋 Level 2 - Metadata: Full schema details on-demand for selected entities
- ⚡ Level 3 - Execution: Authenticated CRUD operations using metadata from Level 2
- 🔌 MCP Protocol Layer: Full compliance with MCP 2025-06-18 specification
- 🌐 HTTP Transport: Session-based Streamable HTTP for web applications
- 🔐 BTP Integration: Seamless authentication via SAP BTP Destination service
3-Level Approach Benefits:
- Token Efficient: Level 1 returns 90% less data than full schemas
- Progressive Detail: Fetch full schemas only when needed
- Better LLM Experience: Smaller responses, clearer workflow
- Reduced Context: From 200+ tools down to just 3
✨ Key Features
🎨 Natural Language to OData
- Smart Query Translation: Converts natural language to proper OData queries
- Context-Aware Operations: Understands entity relationships and constraints
- Parameter Inference: Automatically maps user intent to tool parameters
🔄 Dynamic CRUD Operations
- Read Operations: Entity sets with filtering, sorting, pagination
- Create Operations: New entity creation with validation
- Update Operations: Partial and full entity updates
- Delete Operations: Safe entity deletion with confirmation
🚀 Production-Ready
- Session Management: Automatic session creation and cleanup
- Error Handling: Comprehensive error handling with user-friendly messages
- Logging: Detailed logging for debugging and monitoring
- Security: DNS rebinding protection, CORS, Helmet security
- Service Catalog: Live discovery of available services
- Entity Schemas: Dynamic schema generation from OData metadata
- Capability Detection: Automatic detection of CRUD capabilities per entity
🏛️ System Architecture
┌─────────────────────┐ ┌───────────────────────────┐ ┌─────────────────────┐
│ │ │ │ │ │
│ 🤖 AI Agent │ │ 🖥️ SAP MCP Server │ │ 🏢 SAP │
│ - Claude │◄──►│ - Service Discovery │◄──►│ - OData Services │
│ - GPT-4 │ │ - CRUD Tool Registry │ │ - Business Logic │
│ - Local LLMs │ │ - Session Management │ │ - Master Data │
│ │ │ - BTP Authentication │ │ │
└─────────────────────┘ └───────────────────────────┘ └─────────────────────┘
│
▼
┌───────────────────────────┐
│ │
│ ☁️ SAP BTP Platform │
│ - Destination Service │
│ - Connectivity Service │
│ - XSUAA Security │
│ │
└───────────────────────────┘
🎯 Use Cases
📈 Business Intelligence Queries
User: "Show me top 10 customers by revenue this quarter"
→ Tool: r-CustomerService-Customer
→ Parameters: $filter, $orderby, $top
📝 Data Maintenance
User: "Update supplier ABC123 to have status 'Active'"
→ Tool: u-SupplierService-Supplier
→ Parameters: SupplierId="ABC123", Status="Active"
📊 Analytical Insights
User: "How many open purchase orders are there?"
→ Tool: r-PurchaseOrderService-PurchaseOrder
→ Parameters: $filter=Status eq 'Open'&$count=true
🔧 System Administration
User: "List all inactive users in the system"
→ Tool: r-UserService-User
→ Parameters: $filter=Status eq 'Inactive'
🛠️ Installation & Setup
Prerequisites
- Node.js 18.x or higher
- SAP S/4HANA or ECC system with OData services enabled
- SAP BTP account with Destination and Connectivity services
- TypeScript knowledge for customization
🚀 Usage Examples
Natural Language Queries
The MCP server automatically translates these natural language commands to the appropriate tool calls:
The server exposes 3 progressive discovery tools instead of hundreds of individual CRUD tools:
Level 1: discover-sap-data
Purpose: Lightweight search for services and entities
Returns: Minimal data (serviceId, serviceName, entityName, entityCount)
Usage:
// Search for customer entities
discover-sap-data({ query: "customer" })
// Get all available services
discover-sap-data({ query: "" })
// Search in specific category
discover-sap-data({ query: "sales", category: "sales" })
Fallback: If no matches found, returns ALL services with entity lists
Purpose: Get complete schema for a specific entity
Returns: Full schema with properties, types, keys, capabilities
Usage:
// Get full schema for Customer entity
get-entity-metadata({
serviceId: "API_BUSINESS_PARTNER",
entityName: "Customer"
})
Output: All properties, types, nullable flags, maxLength, keys, capabilities
Level 3: execute-sap-operation
Purpose: Perform authenticated CRUD operations
Operations: read, read-single, create, update, delete
Usage:
// Read customers
execute-sap-operation({
serviceId: "API_BUSINESS_PARTNER",
entityName: "Customer",
operation: "read",
filterString: "CustomerName eq 'ACME'"
})
// Update customer
execute-sap-operation({
serviceId: "API_BUSINESS_PARTNER",
entityName: "Customer",
operation: "update",
parameters: { CustomerID: "123", CustomerName: "New Name" }
})
Workflow Example
1. discover-sap-data → "customer"
↓ Returns: List of customer-related entities
2. get-entity-metadata → "API_BUSINESS_PARTNER", "Customer"
↓ Returns: Full schema with all properties
3. execute-sap-operation → read/create/update/delete
✓ Executes operation with proper parameters
Protocol Version: 2025-06-18
Supported Capabilities:
- ✅ Tools with
listChanged notifications
- ✅ Resources with
listChanged notifications
- ✅ Logging with level control
- ✅ Session Management for HTTP transport
- ✅ Error Handling with proper error codes
Transport Support
- ✅ Streamable HTTP (recommended)
- ✅ Stdio for command line usage
- ✅ Session-based with automatic cleanup
- ✅ DNS Rebinding Protection
🔒 Security & Authentication
SAP BTP Integration
- Uses BTP Destination service for S/4HANA or ECC authentication
- Supports Principal Propagation and OAuth2
- Automatic token refresh and session management
- Secure credential storage in BTP
HTTP Security
- Helmet.js security headers
- CORS protection with configurable origins
- DNS rebinding attack prevention
- Request rate limiting (configurable)
Session Security
- Automatic session expiration (24h default)
- Secure session ID generation
- Session cleanup on server restart
- Memory leak prevention
📚 API Reference
Health Check
GET /health
{
"status": "healthy",
"activeSessions": 3,
"discoveredServices": 25,
"version": "2.0.0"
}
Server Info
GET /mcp
{
"name": "btp-sap-odata-to-mcp-server",
"protocol": { "version": "2025-06-18" },
"capabilities": { "tools": {}, "resources": {} },
"features": ["Dynamic service discovery", "CRUD operations"],
"activeSessions": 3
}
Documentation
GET /docs
{
"title": "SAP MCP Server API",
"endpoints": {...},
"mcpCapabilities": {...},
"usage": {...}
}

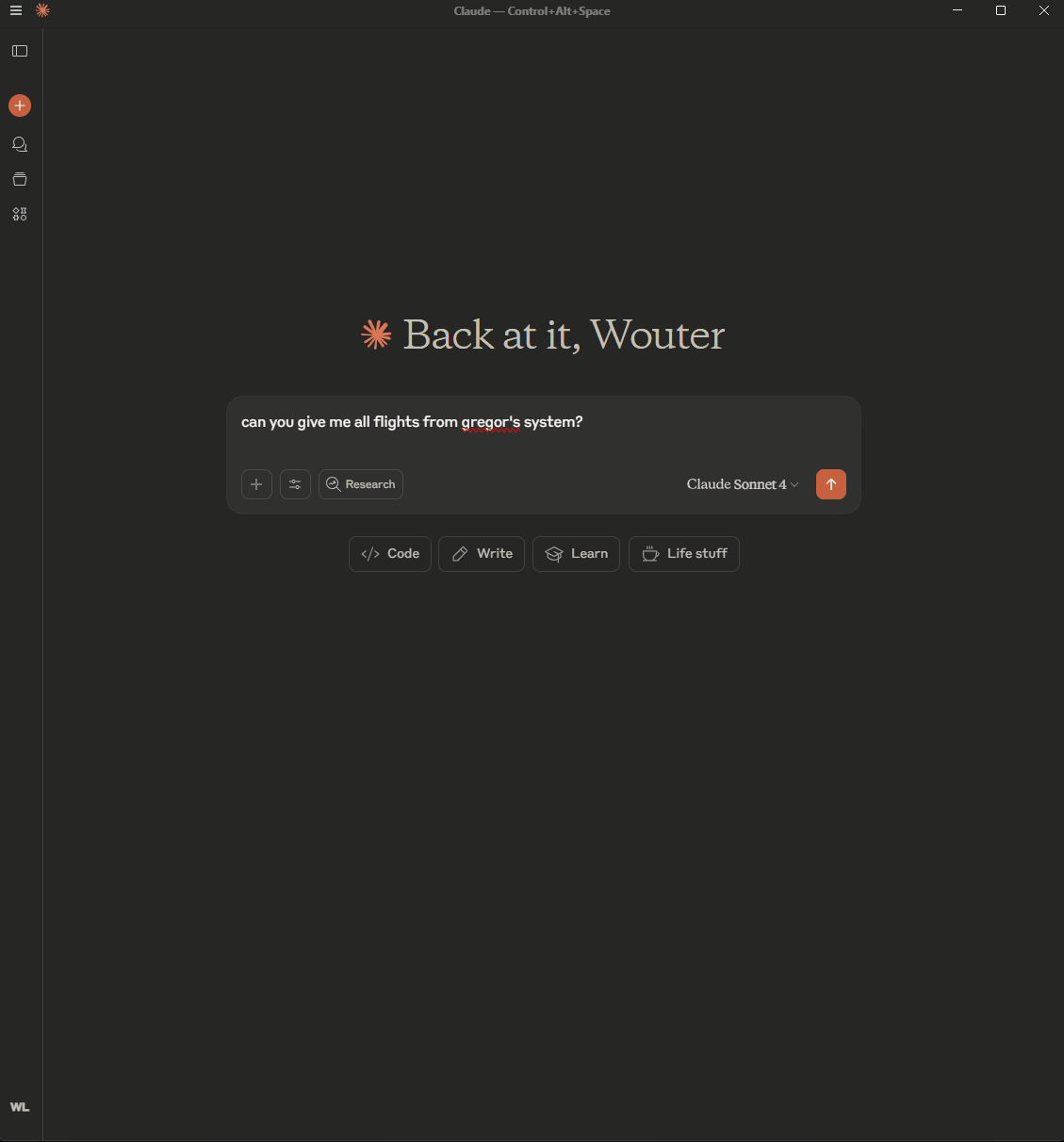

🎬 Demo
See the MCP server in action:
To disable registration of the ReadEntity tool for all entities in all services, set the following in your .env file:
DISABLE_READ_ENTITY_TOOL=true
This will prevent registration of the ReadEntity tool for all entities and services.
⚡ Quick Start
